Canon EOS Rebel XS Strap Loops Replacement

ID: 4962

Description: Use this guide to remove the two metal neck...

Steps:

1. Grasp the eyepiece with your fingers and slide upwards to remove it.

2. Using a PH000 screwdriver bit, remove the three black screws shown in the two pictures that are all 4 mm in length and 1 mm in diameter.

3. Using a Phillips #000 screwdriver, remove the two black screws shown in the picture that are both 6 mm in length and 1.25 mm in diameter.

4. Pull off the front cover.

5. Using an opening tool (you can also use your nails, but try not to use something potentially damaging to the camera such as metal), separate the top cover from the rest of the camera!

6. Remove the two 5.0mm (.20in) silver screws from the first loop hole using a #00 Phillips screwdriver (Picture Two).
7. Remove the 6.8mm (.27in) wide head silver screw from the second loop hole using a #00 Phillips screwdriver (Picture Three).

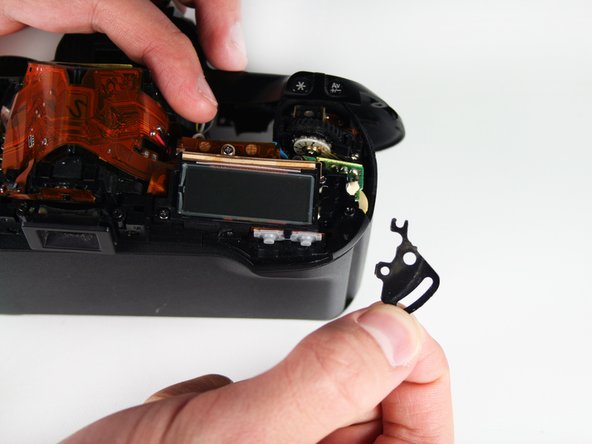

8. Use your fingers to remove the loop holes.
