Iomega Z100S2 Case Replacement

ID: 3741

Description:

Steps:

1. Push in the plastic tab that can be seen through cracks in the front left corner using a spudger.

2. Move down the same side and push in the plastic tab.

3. Move to the front right side and once again push in the plastic tab.
4. There is not a fourth tab to push in after this one.

5. Grab the cover by the front side and pull upwards.
6. You might encounter some resistance. Pull firmly, but don't yank it.

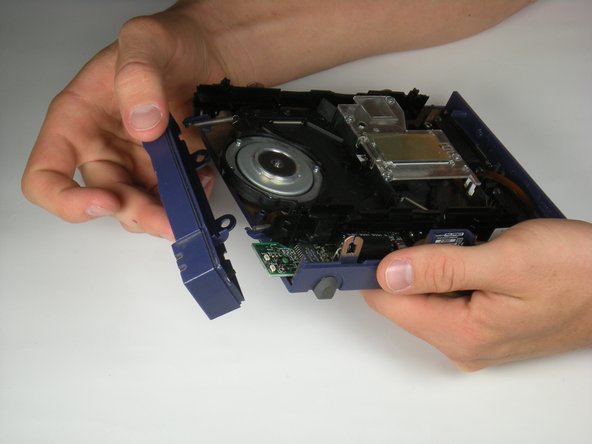

7. Tilt the front case down until the pegs detach from the bottom of the case.
8. Lift up and outward.
9. The motherboard will be loose at this point.
