HTC Touch LCD Screen Replacement

ID: 5269

Description: This guide instructs readers on how to replace...

Steps:

1. Remove the back panel by sliding it up.

2. Remove the battery.

3. Remove the 4 torx-head screws in the corners of the phone using the T5 Torx Screwdriver.

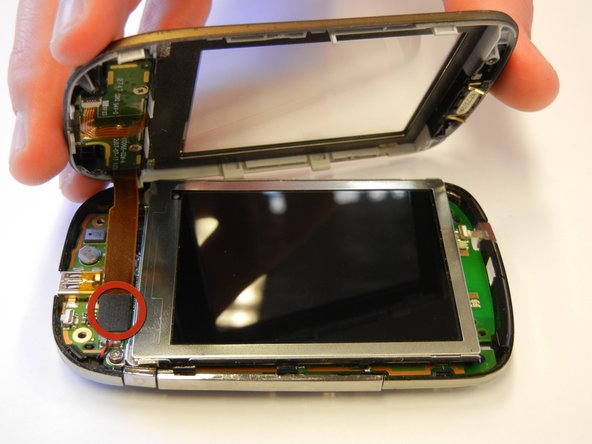

4. Use the plastic opening tool to remove the front panel from the phone.
5. Be sure to unplug the front button cable from the inside of the phone.

6. Unscrew the 2 torx-head screws at the base of the LCD screen using the T5 Torx Screwdriver.

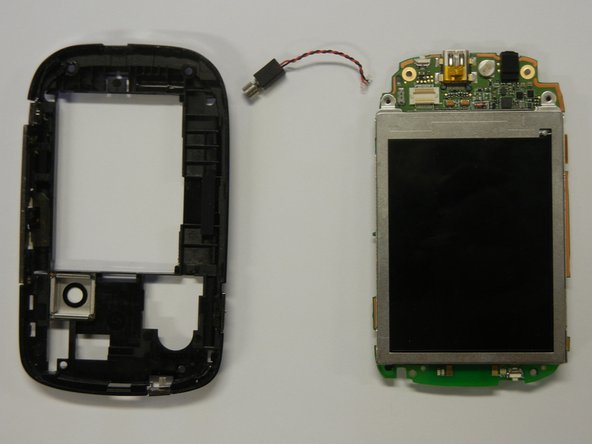

7. Separate the motherboard from the black plastic casing.
8. Unplug the black and red wire from the motherboard.
9. Unplug the black and red wire from the black plastic casing.

10. Lift the black lever next to the orange ribbon cable to remove the LCD screen.
