iMac Intel 24" EMC 2111 Optical Drive Replacement

ID: 5209

Description: Use this guide to replace a broken optical drive.

Steps:

  1. Loosen the two Phillips screws securing the access door to your iMac.
  2. Both screws remain captive within the access door.
  3. Remove the access door.
    4. Step image Step image
  4. Remove the following screws along the lower edge of your iMac:
  5. Three 6 mm T8 Torx screws
  6. One 8 mm T8 Torx screw
    7. Step image
  7. Lay your iMac stand-side down on a flat surface.
  8. To lift the front bezel off the iMac, simultaneously:
  9. Use your thumbs to press in the RAM arms and hold the iMac down.
  10. Use your index fingers to pull the small bridge of material on the front bezel toward yourself.
  11. Pull the front bezel up with your index fingers.
  12. Once the small bridge of material has cleared the RAM arms, lift the front bezel by its lower edge just enough to clear the bottom edge of the rear case.
    13. Step image Step image
  13. Lift the front bezel off the rear case and rotate it away from the bottom edge of the iMac, minding the camera and microphone cables still attached to its upper edge.
  14. The third picture shows the top front bezel brackets and their slots cut into the top edge of the iMac's rear case.
  15. Do not completely remove the front bezel, as it is still attached by the camera/microphone cables.
    16. Step image Step image Step image
  16. If necessary, remove the strip of tape covering the microphone cable connector.
  17. The microphone connector is located near the inside of top edge of your iMac.
    18. Step image
  18. Disconnect the microphone cable.
  19. Disconnect the camera cable by pulling its connector away from the socket on the camera board.
  20. The camera cable connector and socket are delicate and easily bent. Remove with caution.
    21. Step image Step image Step image
  21. Peel the two highlighted EMI shield tabs off the frame of the LCD.
    22. Step image Step image
  22. Remove the two T6 Torx screws securing the display data cable to the logic board.
    23. Step image
  23. Pull the black plastic tab attached to the display data cable connector to disconnect it from the logic board.
    24. Step image
  24. Use your fingertips to pull both sides of the wide inverter cable connector out of its socket on the logic board.
  25. De-route the inverter cable from its location next to the CPU fan.
    26. Step image Step image
  26. Before attempting this step, we recommend laying your iMac stand-side down on a table to avoid the display falling down.
  27. Remove the eight T8 Torx screws securing the display assembly to the rear case.
  28. It is helpful to use a thin magnetized screwdriver to remove these screws.
    29. Step image
  29. Remove the display assembly from the iMac.
    30. Step image
  30. Remove the strip of tape covering the optical drive cable connector.
    31. Step image
  31. Gently pull the cable retainer on the optical drive cable ZIF socket toward the right side of the iMac.
  32. The retainer should move about 1 mm and stop. Do not attempt to remove the retainer.
    33. Step image Step image

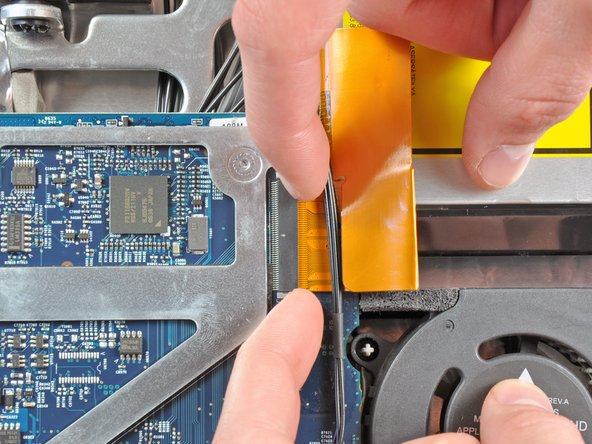

  33. Pull the optical drive ribbon cable out of its socket, being careful not to rip it in the process.
    34. Step image
  34. Pull the optical drive thermal sensor connector toward the right side of the iMac to disconnect it from the logic board.
    35. Step image
  35. Peel off the strip of EMI tape attaching the right side of the optical drive to the rear case.
    36. Step image
  36. Push down on the optical drive bracket retaining clip while pulling the top edge of the optical drive away from the rear case.
    37. Step image
  37. Rotate the optical drive slightly toward the bottom edge of the iMac while pulling it away from the rear case to release the lower retaining clip.

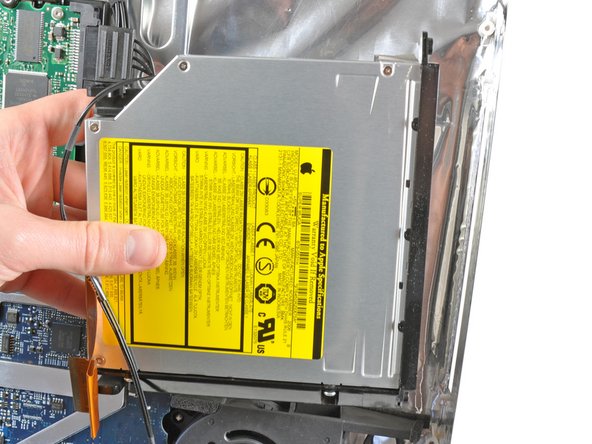

  38. Pull the optical drive away from the right side of the rear case and remove it from the iMac.
    39. Step image Step image
  39. Remove the two T6 Torx screws securing the optical drive cable to the optical drive.
    40. Step image
  40. Insert the flat end of a spudger into the gap between the optical drive cable connector and the optical drive.
  41. Twist the spudger to separate the connector from the optical drive.
  42. Repeat this process for both sides of the connector.
    43. Step image
  43. Pull the optical drive cable connector away from the optical drive.
    44. Step image
  44. Use the flat end of a spudger to remove the pieces of EMI foam from the underside of the optical drive.
  45. Don't forget to transfer these to your new drive.
    46. Step image
  46. Remove the two T10 Torx screws from the side of your optical drive.
    47. Step image
  47. Remove the two T10 Torx screws from the side of your optical drive.
    48. Step image
  48. Use the tip of a spudger to push the two optical drive bracket tabs out of their slots in the top of the optical drive.
    49. Step image
  49. Using the tip of a spudger, press the optical drive bracket tab out of its slot on the side of the optical drive.
    50. Step image
  50. Use the tip of a spudger to press the optical drive bracket tabs out of the slots in the top of the optical drive.
    51. Step image
  51. Pull the optical drive bracket toward the open end of the optical drive to free it from the optical drive.
    52. Step image
  52. Use the flat end of a spudger to pry the optical drive thermal sensor off the adhesive securing it to the optical drive.
  53. Don't forget to transfer the optical drive thermal sensor to your new drive.
  54. If you have a disk or anything else stuck inside your optical drive, we have a guide to remedy the situation.
    55. Step image
