Trolltech Greenphone Teardown

ID: 5197

Description: This is the full teardown of Digia, Qt...

Steps:

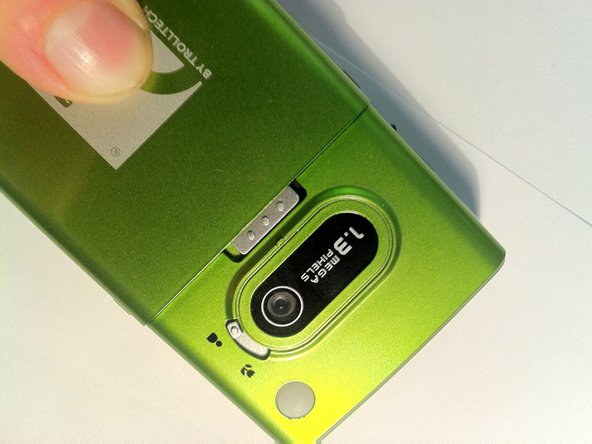

1. here is the Qtopia green phone.

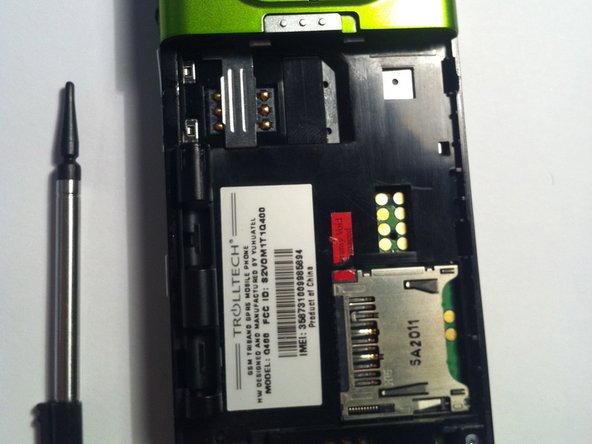

2. first, remove the mini-SD card from the side of the phone.

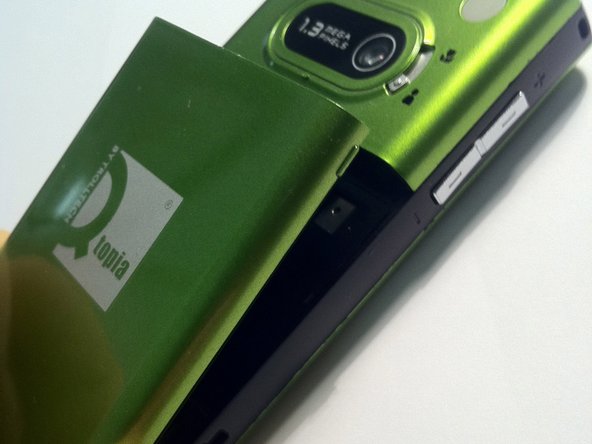

3. then, remove the battery from the phone
4. Unlocking the switch for the battery cover is a little difficult.

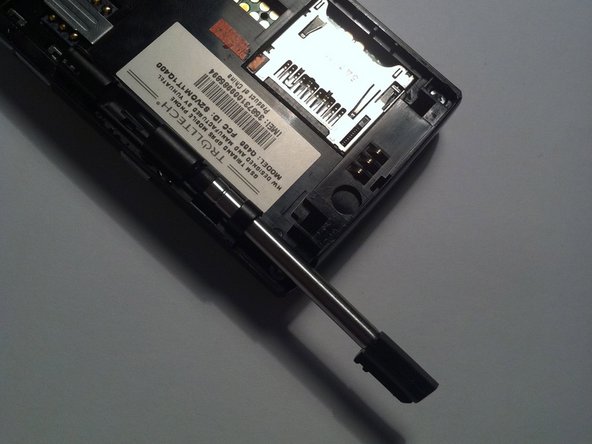

5. when the battery is removed, remove the pencil from the device

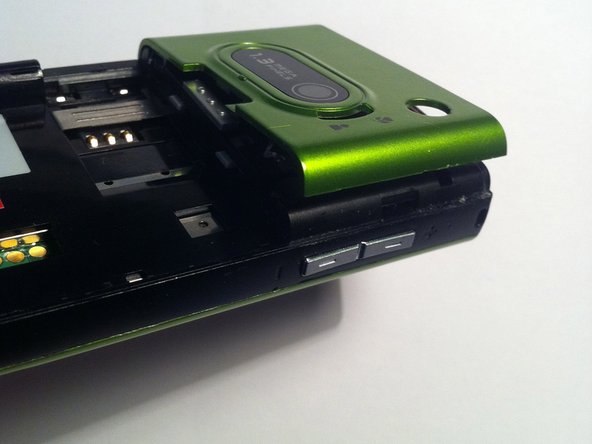

6. this picture shows the two black plastic clips wich you want du unlock if you would like to reach deeper into the interiors of this phone.

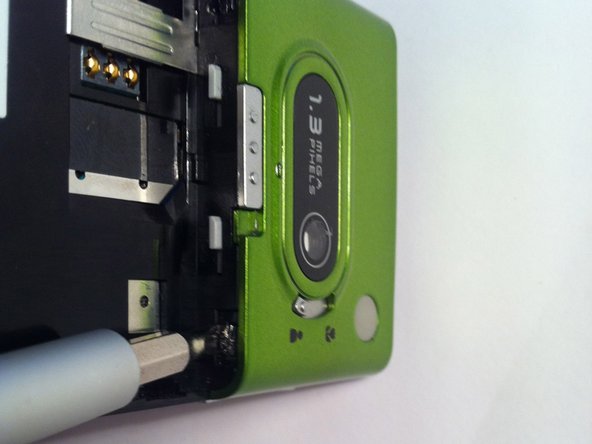

7. the 2e pikture show how to place the slotted pan head screwdriver
8. to unlock them you have to turn the screwdriver around its own axe.
9. when you unlocked both, go with an ipod opening tool around the 3 other sides to unlock several other plastic clips, wich shold be easy to do

10. now your phone should look like this.
11. there is one seperate little silver plastic switch for the camera lense.
12. don't lose that

13. now remove the only 4 screws in this froggy device.
14. the both on the upper part
15. and at the both at the bottom part
16. and see them lie next to the device

17. now insert an ipod opening tool between the (green) front and the black stripe in the center of the phone
18. be careful, the front is fragile
19. as you are gone around its sides, you can simply disassemble the front panel without disconnecting anything.

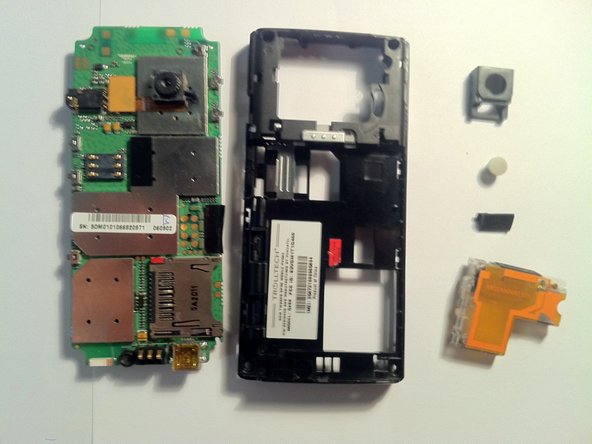

20. now you are able to put the mainboard (the one and only), display and buttons (it appears that this is one huge part) and the black back/mid frame from each other
21. its easy to remove the speaker/antenna and some plastic parts from the back panel
22. the camera is glued on the board, but connected with an usual camera connector.
23. all EMI shields are brazed onto the bord.

24. this was the whole thing. thank you for reading this far.
25. fancy phone this is!
