Sony CCD-TR81 Lens Assembly Replacement

ID: 4960

Description: If the lens of the Sony CCD-TR81 video camera...

Steps:

  1. Lift viewfinder to access battery pack.
  2. Step image
  3. Press the battery release button.
  4. While pushing the battery button, slide the battery to the left.
  5. Step image Step image
  6. Pull the battery pack out of the video camera.
  7. Step image
  8. Open the cassette cover.

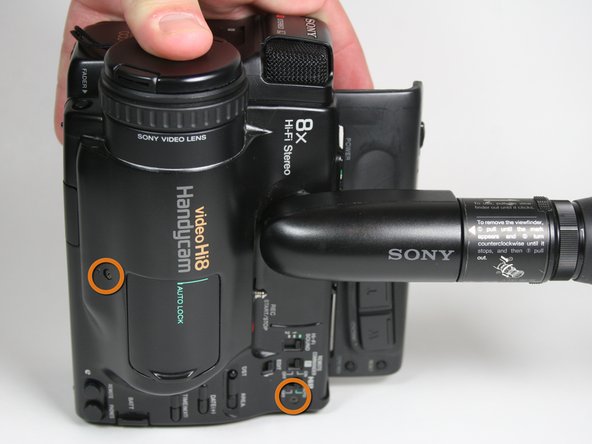

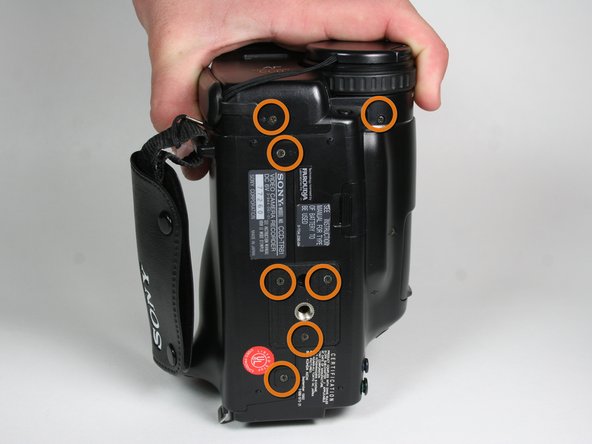

  9. Unscrew 14 screws located on the outer casing. Three are located on the top face 2x6.8mm and 1X4.54mm, three on the left face 1x4.54mm,1x5.3mm and seven on the bottom face 5x4.54mm and 2x6.77mm.
  10. Step image Step image Step image
  11. Remove five screws from the right side, from bottom to top, 3x4.54mm 2x5.70mm.
  12. Remove the single 4.5 mm screw from the backside.
  13. Step image Step image
  14. Pull off the plastic tape cover by lifting it up and out of the camera base.
  15. Step image
  16. Disconnect the mic assembly by pulling it away from the camera base.
  17. Do not pull too hard as the wires are still connected.
  18. Step image
  19. Pull the bottom part of the case away from the camera.
  20. Step image
  21. Remove the three 4.5 mm screws from the right face of the video camera.
  22. Step image
  23. Remove the single 3.6 mm screw at the front of the video camera on the circuit board.
  24. Step image
  25. Pull the audio/video inputs underneath the microphone assembly. The inputs should still be connected to the circuit board.
  26. Step image
  27. Remove two remaining 3.6 mm case screws from the front of the camera.
  28. Step image
  29. Using metal tweezers, pull out the plastic connector box on the front side.
  30. Again use metal tweezers to pull out the connection box on the bottom of the camera. The right side of the case can now be removed by pulling it to the right.
  31. Step image Step image
  32. Remove the three screws from the circuit board.
  33. Step image
  34. Using metal tweezers, pull out the plastic connector box located in the center area.
  35. Pull up the circuit board.
  36. Be careful; it should still be connected to a band wire.
  37. Step image Step image
  38. Remove all three screws around the lens assembly.
  39. Step image Step image Step image
  40. Remove three gold screws from the lens assembly.
  41. Be careful not to break band wires.
  42. Step image
  43. Lift the lens assembly from the large circuit board.
  44. Remove the two 5.3 mm screws.

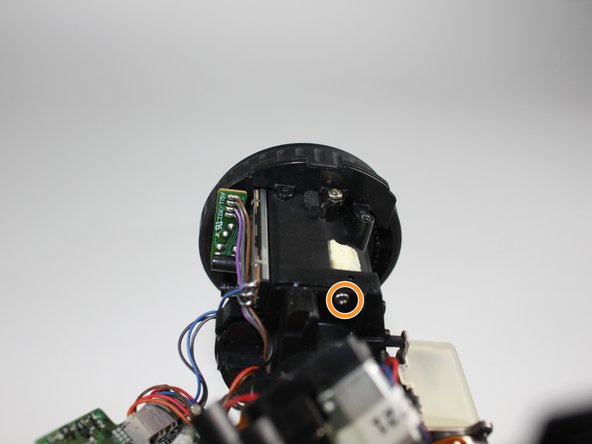

  45. Remove the single 6.1 mm screw using a Phillips #000 screwdriver.
  46. Remove the lens from the lens assembly.
  47. Step image Step image Step image
