Canon EOS Rebel XS Grip Replacement

ID: 4947

Description: Use this guide to replace the grip of the camera.

Steps:

  1. Remove the two 3mm (1/8") black screws from the side cover using a #00 Phillips screwdriver.
    2. Step image
  2. On the bottom, remove the 6mm (13/64") screw with the #00 Phillips Screwdriver.
  3. Pry up the panel; starting from the front/bottom corner, as indicated.
  4. There's a concealed lip, under the opposite edge.
    5. Step image
  5. Remove three medium length screws from the bottom of the camera
    6. Step image
  6. Remove the two medium length screws on the front panel of the camera above the lens mount.
  7. Once you done, you may use the Spudger to panel from non-grip side.
  8. If you start on the grip side, it will be more challenging to loosen the panel.
    9. Step image
  9. Remove the two 4.5mm (.18in) long black screws from the camera grip using a #00 Phillips screwdriver.
    10. Step image
  10. Use your fingertip to pry off the external shutter port cover.
    11. Step image
  11. Remove the two 5mm (.20in) long silver screws securing the grip to the camera using a #00 Phillips screwdriver.
    12. Step image

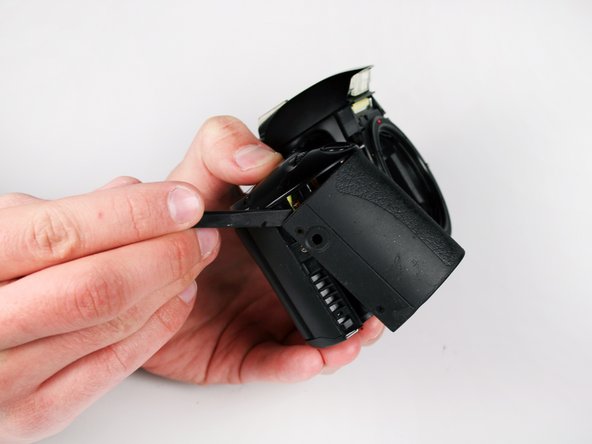

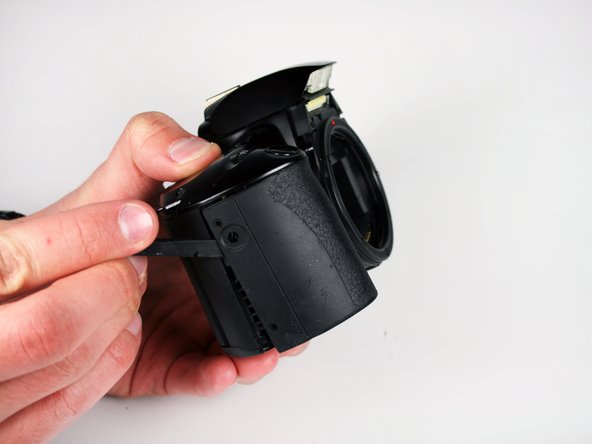

  12. Use the spudger tool to carefully pry the grip from the rest of the camera.
    13. Step image Step image Step image
  13. Once the grip is loose, use your fingers to remove it from the camera.
    14. Step image
