Logitech Revue Teardown

ID: 3788

Description: The Logitech Revue is the first set-top box...

Steps:

  1. The Logitech Revue with Google TV finally makes its way into the hands of iFixit.
  2. Although other options exist, the Revue ships with a custom keyboard controller, with built-in multi touch trackpad.
  3. Things you can do with the Logitech Revue and Google TV:
  4. Watch Television
  5. Watch Movies
  6. Browse the Internet
  7. Use Apps
  8. Combine any of the above options any way you like.
    9. Step image Step image Step image
  9. Some of the ports found on the Revue:
  10. HDMI In / HDMI Out
  11. 2x IR Blasters
  12. 2x USB
  13. Ethernet

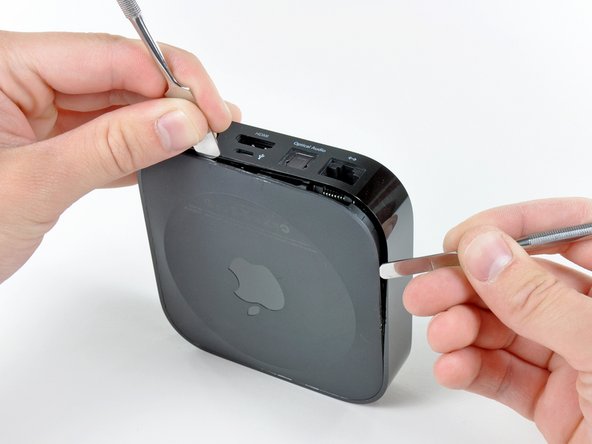

  14. SPDIF
  15. Vents on the sides of the Revue help keep the motherboard nice and cool.
  16. Up and Atom! Looks like today's teardown will feature an Intel chip.
    17. Step image Step image Step image
  17. We figured there were screws underneath the rubber pads, and we were correct.

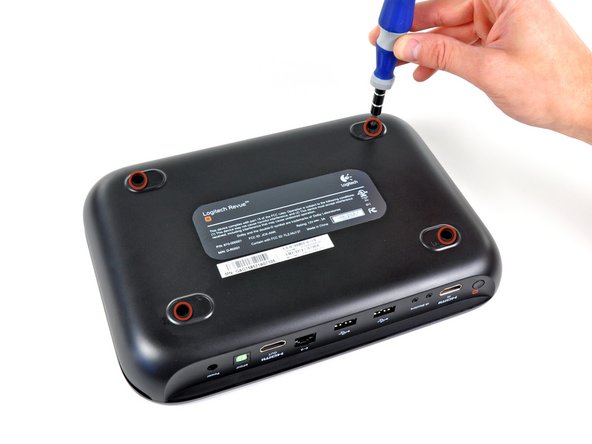

  18. Four #2 Phillips screws lurked beneath and were the first to come out.
  19. This is much easier than the two-handed pry required to open the Apple TV.
    20. Step image Step image Step image
  20. Once the bottom screws were removed, it was as simple as inserting a plastic opening tool into the plastic seam and prying the two halves apart.
  21. There are a bunch of clips around the perimeter of the device, so we had to be careful not to break any of them.
    22. Step image
  22. The cover comes off just like that, revealing a beautiful blue motherboard within.
  23. There's a fan approximately twice the size of the new MacBook Air's fan on the top cover of the Google TV Logitech Revue.
  24. The internal fan is attached to a nifty duct that directs the air flow across the CPU heat sink (located in the area shaded in red when the device is assembled) toward the vents on the side of the top cover.

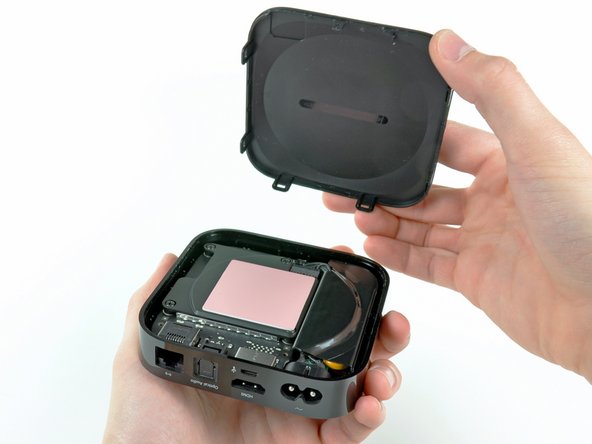

  25. Compare this to the fanless Apple TV that relies on conduction and natural convection to dissipate its internally generated heat.
    26. Step image Step image Step image
  26. It's a very simple layout inside -- just one large motherboard, brought to you by Gigabyte.
  27. There's tons of unused space inside. The extra room should keep the Revue pretty cool and prevent any serious overheating from taking place.
  28. Still, it is quite the departure from the "as small as possible" route Apple has chosen to take with the Apple TV.
    29. Step image
  29. Next, a spudger is used to disconnect the Wi-Fi antenna cable.
  30. This style of IPEX MHF connector is widely used in the electronics world as an antenna connector.

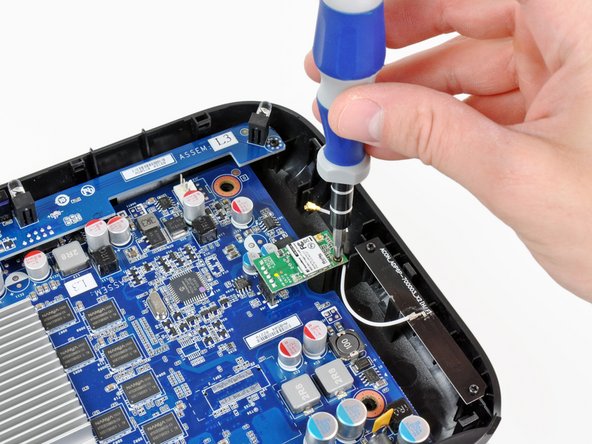

  31. A #1 Phillips screwdriver makes short work of the single screw securing the Wi-Fi card to the lower case.

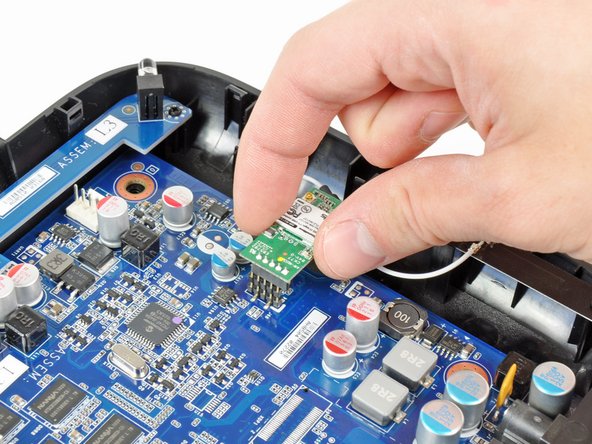

  32. Finally, the Wi-Fi card can be lifted off the pins connecting it to the main board.
    33. Step image Step image Step image
  33. The 802.11 b/g/n Wi-Fi board is manufactured by AzureWave.

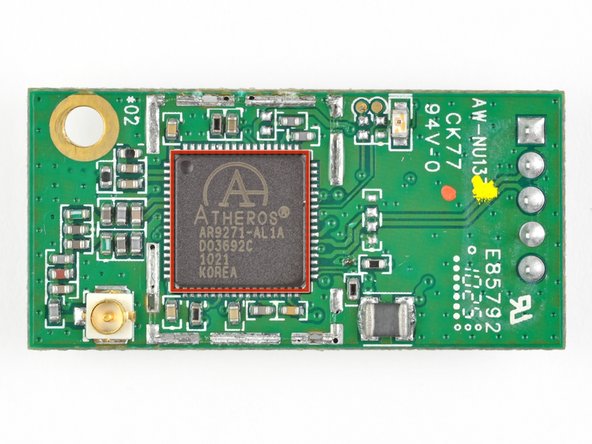

  34. De-soldering the protective cap reveals an Atheros AR9271 featuring an on-board CPU and RAM to run WLAN functions on the chip itself, taking load off other components on the main board.
  35. On the back of the Wi-Fi board lies an Atmel H024 IC.
    36. Step image Step image Step image
  36. A couple Phillips screws secure the IR sensor and RF transceiver boards to the lower case.

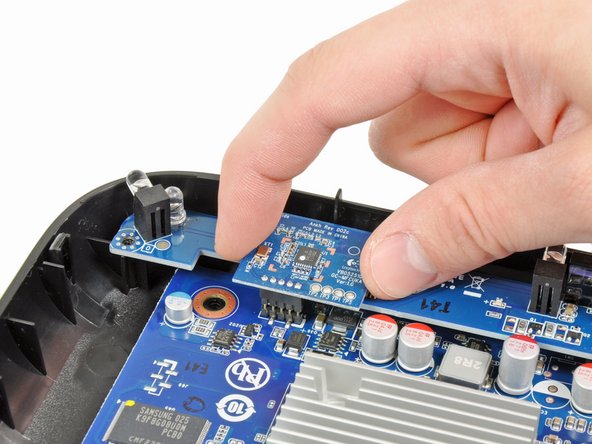

  37. Before the IR sensor board can be removed, the RF transceiver board must be lifted off the pins connecting it to the main board.

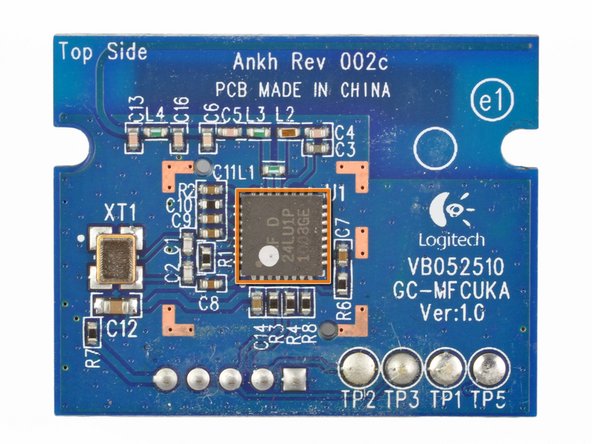

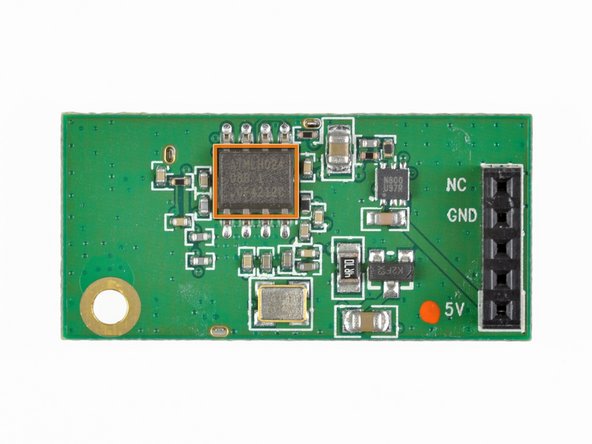

  38. A Nordic Semiconductor RF24LU1 transceiver is attached to the top of the board. This chip is responsible for receiving and transmitting signals with the wireless keyboard.
    39. Step image Step image Step image

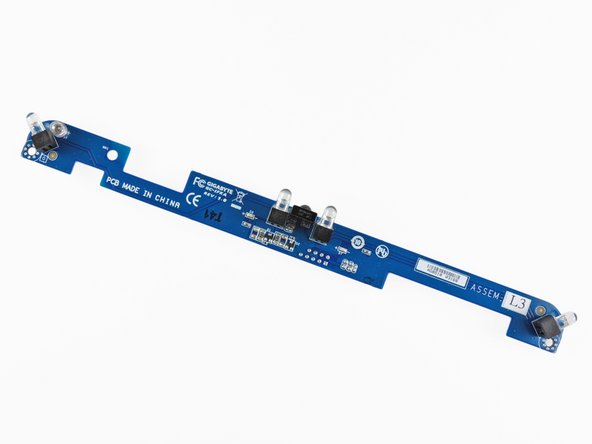

  39. Removing the IR board, which contains four LEDs -- two regular and two infrared.
  40. We assume that the black plastic component in the center is the receiver for the IR signals.
    41. Step image Step image
  41. We take off the heatsink to reveal the Atom processor. The heatsink is held in place by two Phillips screws -- no need to reinvent the wheel here...

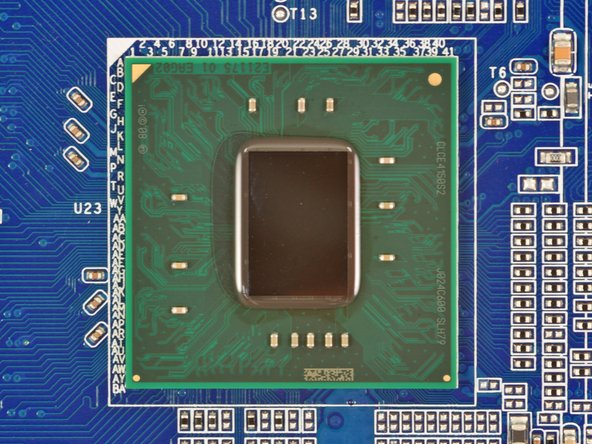

  42. The Intel Atom CE4150 1.2 GHz processor.
  43. So how does the Atom CE4150 stack up against the A4 processor?
  44. The Intel CE4150 is clocked at 1.2 GHz, whereas the Apple A4 processor is capped at 1.0 GHz.
  45. The architecture of the Apple A4 revolves around its package-on-package (PoP) design, encompassing both processor and RAM into one design. The Atom CE4150 design relies on external RAM chips.
    46. Step image Step image
  46. Contents of the Gigabyte GA-SBKAN2:
  47. Intel Atom CE4150 1.2 GHz processor, with a 400 MHz GPU
  48. Samsung K9F8G08U0M 1 GB NAND Flash
  49. Hynix H27UBG8T2ATR 4 GB NAND Flash
  50. Silicon Image Sil9135 HDMI 1.3 Receiver
  51. Nanya NT5CB128M8CN-CG 1 GB DDR3 SDRAM (1 Gb X 8)
  52. Realtek Semiconductor RTL8201N 10/100M PHYceiver
  53. Microchip PIC24FJ64GA004-I/PT 16-bit microcontroller
    54. Step image Step image
  54. Being the tinkerers that we are, we had to take a look inside the keyboard.
  55. On the reverse of the touch pad is a Synaptics T1021A touch controller, also found in the Microsoft Kin Two and the Sony Ericsson Xperia X10 Mini E10i.
  56. A Nordic Semiconductor nRF24LE1 found near the batteries most likely provides wireless connectivity to the Revue base station.
    57. Step image Step image Step image
  57. Logitech Revue Repairability: 8 out of 10 (10 is easiest to repair).
  58. Opening the case is super-simple -- only 4 screws and a bunch of clips stand in your way.
  59. Only standard Phillips screws are used.
  60. Daughterboard connectors easily disconnect from the motherboard sockets.
  61. The fan is very easy to replace, should it ever fail.
  62. If you have to replace anything on the motherboard, you have to replace the entire board.
    63. Step image Step image
