Kodak EasyShare C913 Front Case Replacement

ID: 3776

Description: Use this guide to remove and install the front...

Steps:

1. Position the camera with the bottom facing up.
2. Slide the battery cover in the direction of the arrow with your finger gently.
3. Remove the batteries

4. Remove the seven 4.5mm screws with a Phillips #00 screwdriver.
5. 2 screws on the left
6. 2 screws on the right
7. 3 screws on the bottom

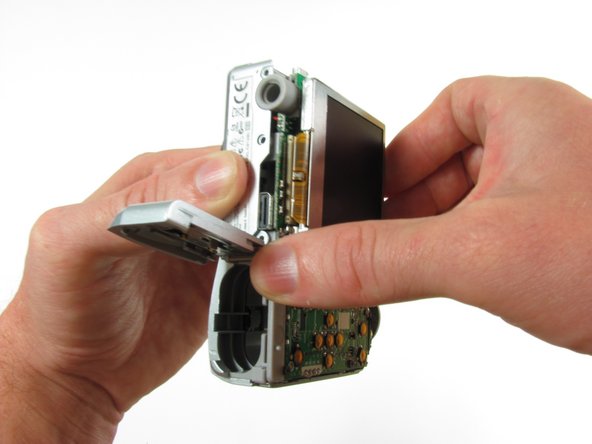

8. Firmly grasp the back of the camera and pull the casing away.

9. Keep the battery door open

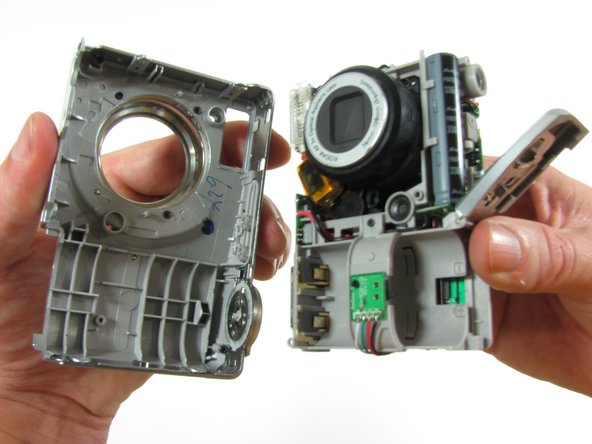

10. Firmly grasp the front casing and pull it away from the camera.
