Kodak EasyShare C913 Back Case Replacement

ID: 3775

Description: Use this guide to remove the back case.

Steps:

1. Position the camera with the bottom facing up.
2. Slide the battery cover in the direction of the arrow with your finger gently.
3. Remove the batteries

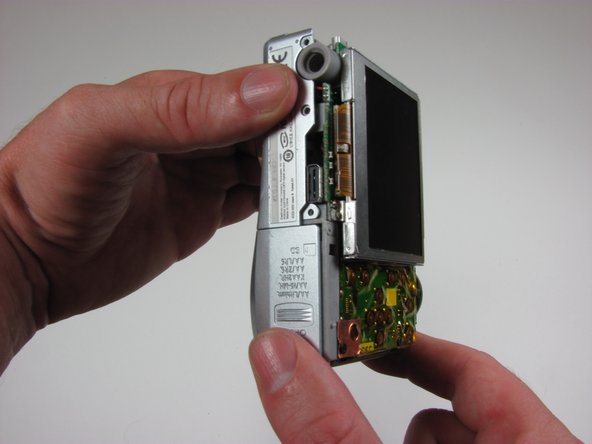

4. Remove the seven 4.5mm screws with a Phillips #00 screwdriver.
5. 2 screws on the left
6. 2 screws on the right
7. 3 screws on the bottom

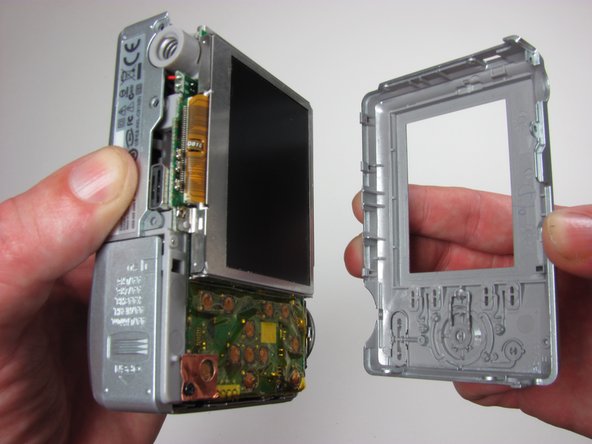

8. Firmly grasp the back of the camera and pull the casing away.
