PlayStation Move Controller Teardown

ID: 3596

Description: This is a quick teardown of the playstation...

Steps:

  1. Playstation Move Controller
    2. Step image
  2. Remove the 4 screws holding the back over and trigger button on.
    3. Step image
  3. Once open you will see two ribbon cables.
  4. The one connected to the trigger button is removable.
  5. The ribbon cable attached to light globe is soldered on.
    6. Step image Step image

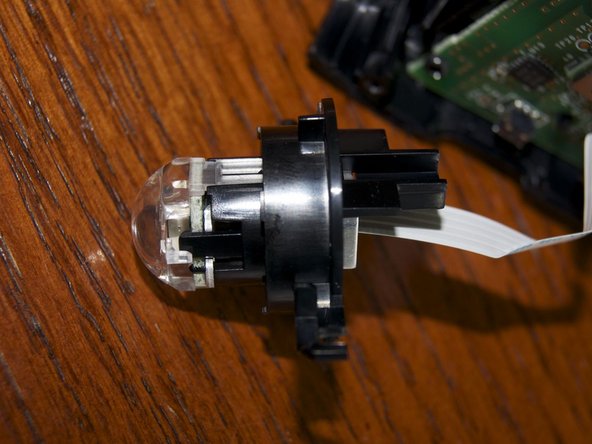

  6. Light Globe Cover and the LED Module can be separated.
    7. Step image Step image Step image
  7. The battery can easily be removed. There is connector on the side of the board.
  8. Battery Specs: Single Cell 1380 mAh 3.7 Volt
  9. Sony Part: LIS1441
    10. Step image
  10. Remove the inner plastic (1 Screw) frame to expose the logic board
  11. Remove the 2 top screws and one bottom screw to remove the logic board from the controller.
    12. Step image

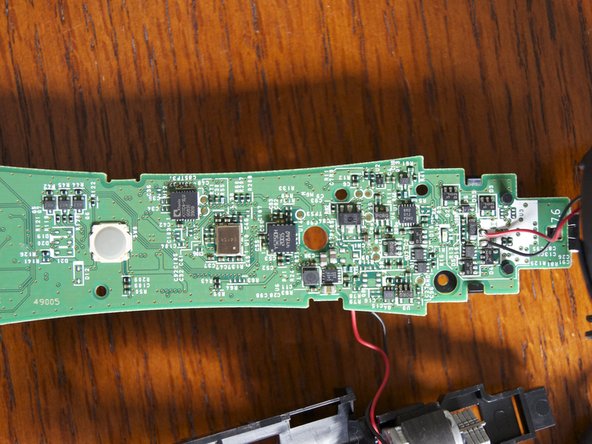

  12. Logic Board
  13. Chip Closeups Included

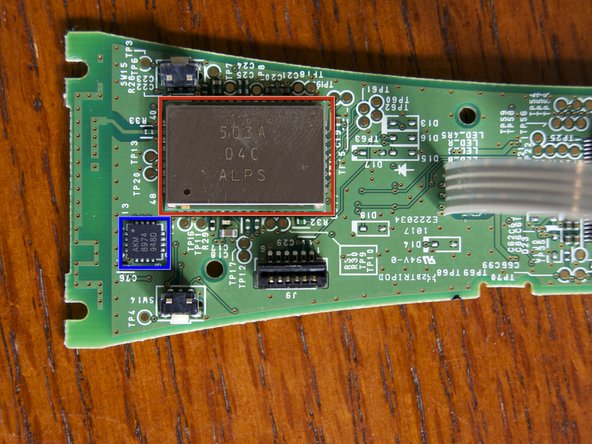

  14. 503A 04c ALPS - Radio Module
  15. AKM8974948D - MEMS Gyroscope
    16. Step image Step image Step image
