Motorola i90c speaker replacement

ID: 2542

Description: Today we are going to repair the speaker system...

Steps:

1. Slide the notch downward while pulling the back cover off to remove it.

2. Use your fingers to push the battery upward from the bottom.
3. Lift upwards to remove the battery.

4. Unscrew the antenna in a counter-clockwise fashion.
5. Remove the aluminum cover.

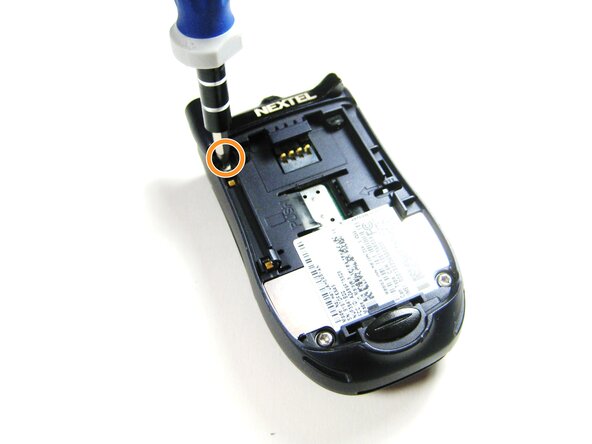

6. Unscrew the 3 screws shown.

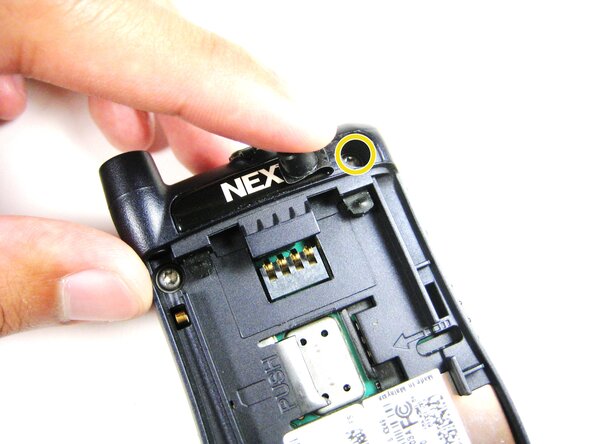

7. Lift the right part of the Nextel logo
8. Remove the screw underneath.

9. Forcing the cover off could damage the ribbon cable, so be careful when doing so.
10. Gently lift the back cover off.

11. Find the connection between the headphone jack and logic board.
12. Begin separating the two pieces, slowly and carefully.

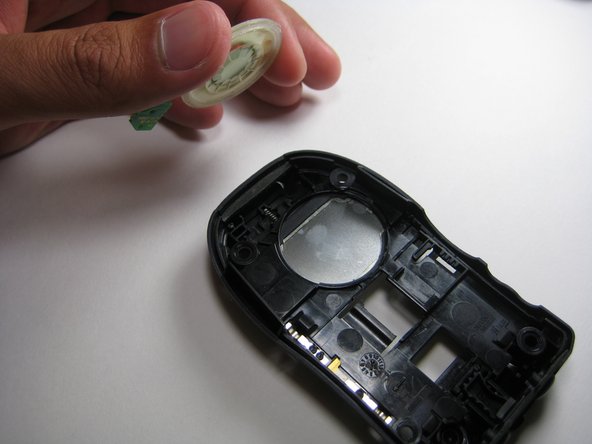

13. Use the prying tools to wedge out the circular part of the speaker system.

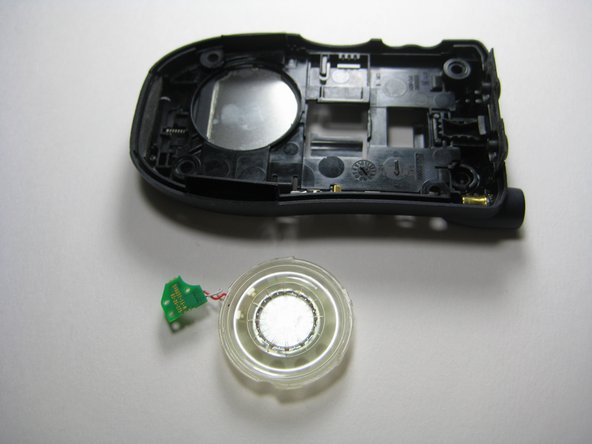

14. Carefully pull out the wiring and circuit board attached to the speaker system using a prying tool or tweezers.
