Motorola V276 Main LCD Screen Replacement

ID: 2507

Description: Replacing a cracked or malfunctioning main LCD...

Steps:

1. Using the plastic opening tool, pry off the top faceplate.
2. Place the tool in the small crack that runs along the side of the phone and pry.

3. Using the T6 Torx Screwdriver remove all 4 small screws.

4. Remove silver plate from phone.

5. Using the spudger remove the plastic camera casing

6. Using the iPod Opening Tool remove the yellow flex cable from the green logic board.

7. Use Spudger or hands to detach flex cable from front screen logic board

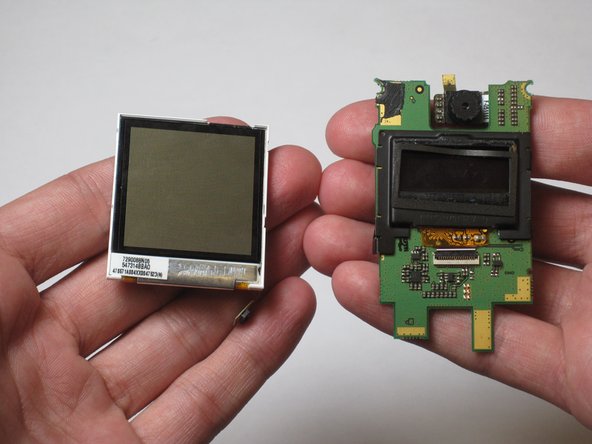

8. Using spudger remove the LCD screen from the green logic board.
