TiVo Series 2 TCD540080 Cooling Fan Replacement

ID: 2479

Description:

Steps:

  1. Power down the TiVo and detach the power cable from the rear of the unit.
  2. Wait 5 minutes for the unit to fully discharge before proceeding to the next step.
    3. Step image
  3. Remove the five T10 screws from the rear of the case using the Torx screwdriver.
    4. Step image
  4. Lift up and pull back the outer casing towards the rear of the unit.
    5. Step image Step image
  5. The fan is held in by four T15 screws on the rear of the device.
    6. Step image
  6. Take the wound red and black wires coming from the fan and follow them back to the logic board.

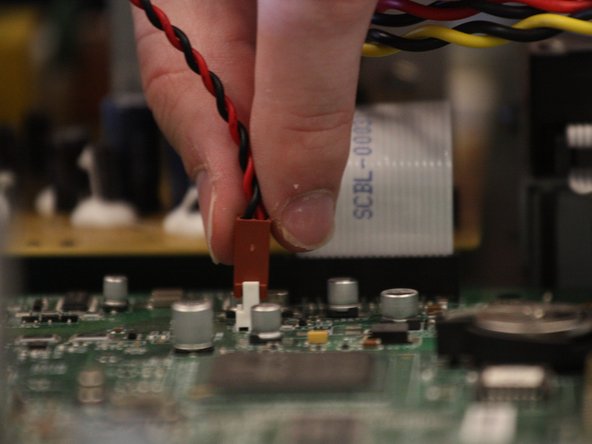

  7. Unplug the connector from the motherboard.
    8. Step image Step image

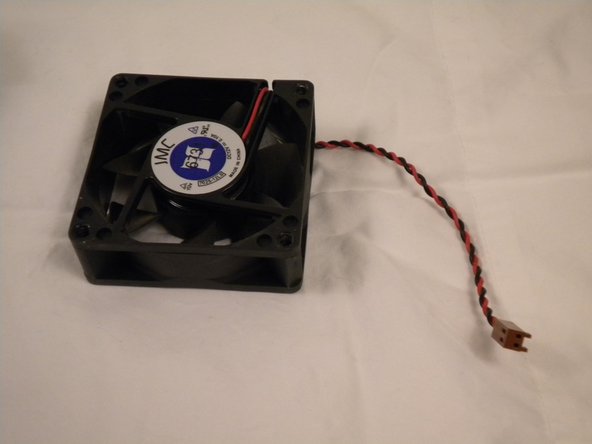

  8. Pull the fan towards the front and out of the TiVo unit.
    9. Step image Step image
