Magellan RoadMate 1200 Speaker Replacement

ID: 2448

Description: The speaker can be easily removed from the back...

Steps:

1. Remove the four rubber caps from the back by using the Phillips #00 screwdriver.

2. Remove the four screws holding the cover in place by using the Phillips #00 screwdriver.

3. Remove the back cover from the device by separating the back cover along its seam.

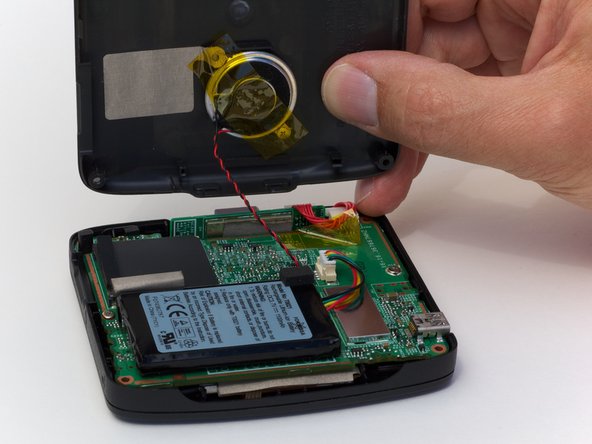

4. Slowly lift the cover—the speaker is screwed onto the back cover and is connected to the circuit board.

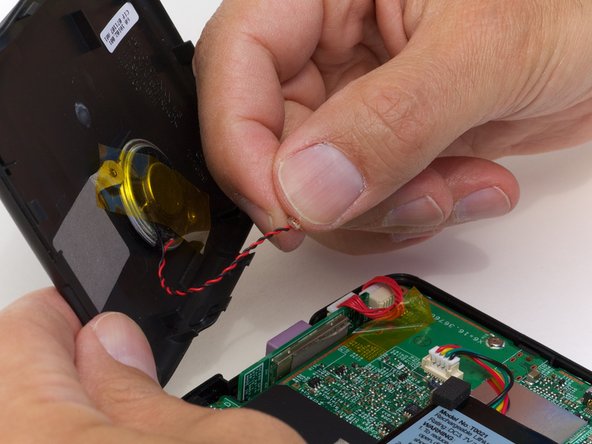

5. Pull the speaker cord, horizontally, by its base, away from the motherboard.
6. When reassembling, make sure that you plug the terminal in the same way. The black wire should be on the side farthest from the battery.

7. Once you pull off the back cover, remove the orange piece of tape on the speaker.

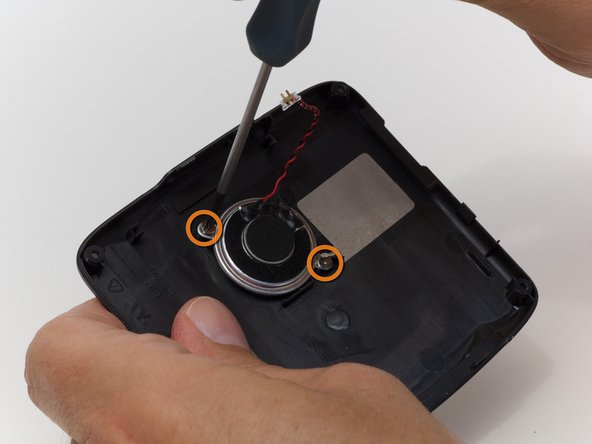

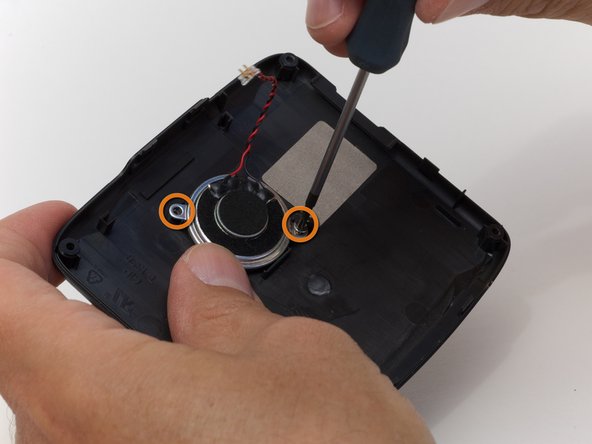

8. Use a Philips #00 screwdriver to remove the 2 screws holding the speaker to the back casing.

9. Once the speaker has been unscrewed, remove the speaker from the back casing with your fingers.
