Motorola V60c Keypad and Keypad Logic Board Replacement

ID: 2382

Description: How to replace the keypad and keypad logic board.

Steps:

1. Depress the silver button.
2. Pull from top of phone to lift the cover.

3. Hold battery from both sides at the bottom.
4. Push upwards and gently lift to remove.

5. Remove 4 screws from corners using T-6 screwdriver.
6. NOTE: Bottom two screws are gold.
7. NOTE: Make sure screws return to correct place when reassembling.

8. Use plastic opening tool to pry up back cover from two side clips.
9. NOTE: Sticker might be attached to rest of phone.

10. Remove the back cover.

11. Use a plastic opening tool to gently remove the orange ribbon cable.
12. Lift up the main logic board.
13. NOTE: Rubber side buttons are not secure and might detach from the main logic board during removal.

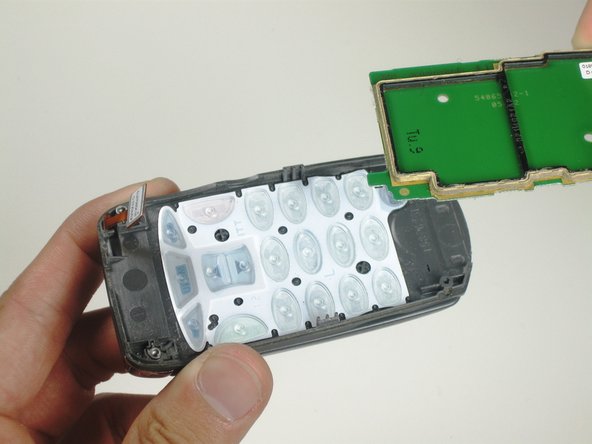

14. Remove the keypad logic board.

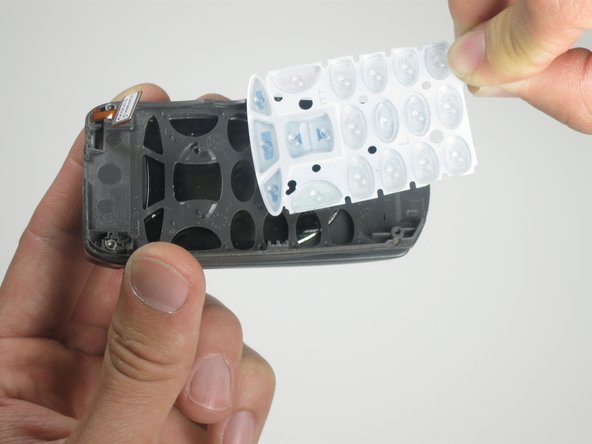

15. NOTE: Plastic spacer is not secured to keypad logic board and might detach during removal.

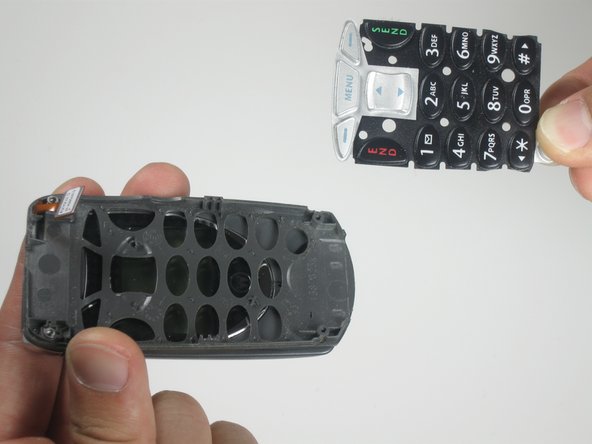

16. Remove the keypad.
