Olympus Stylus 410 Battery Cover Replacement

ID: 2359

Description: If the battery cover on your Olympus Stylus 410...

Steps:

1. Locate the 2 screws on the bottom of the slider.
2. Remove both screws with a #00 Phillips screwdriver.

3. Gently pull on the bottom of the slider until it comes off the lower track.
4. There is a little piece that connects the slider to the track. Be sure not to lose this as it is needed to put the slider back on.

5. Lift the slider up until it comes off the upper track.

6. The slider should now be free from the body of the camera.

7. Locate the 3 screws on the outer metal band and remove them with a #00 Phillips screwdriver.

8. Use the spudger to peel off the outer metal band, starting from the bottom of the camera.
9. The metal band it attached to the camera with glue in addition to screws. Be careful not to bend the band when removing it from the camera.

10. The shutter button can now be removed. It is not connected to the camera and can be lifted off.

11. Remove the memory card.
12. Locate and remove the 2 screws using a #00 Phillips screwdriver.

13. Use a spudger around the edge of the case to loosen it.
14. Carefully wiggle the back case off. This may require a fair amount of force.

15. Locate the 3 internal screws holding on the front of the case. Remove them with a #00 Phillips screwdriver.

16. While grasping the interior and the front case, gently pull until they start to come apart. Some light wiggling may be required.
17. Be careful not to completely pull the front case off because it will still be connected with wires.

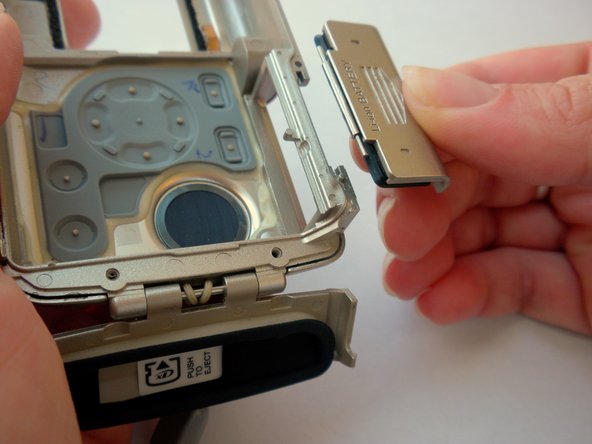

18. Open the battery cover and lift it up and off of back camera case.

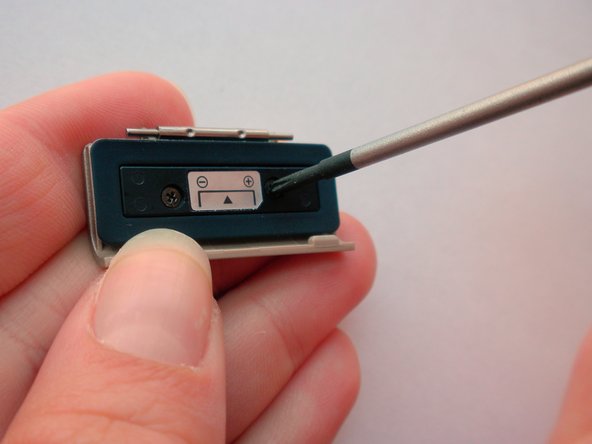

19. Locate and unscrew the 2 screws with a #00 Phillips screwdriver.
20. Remove the black seal.

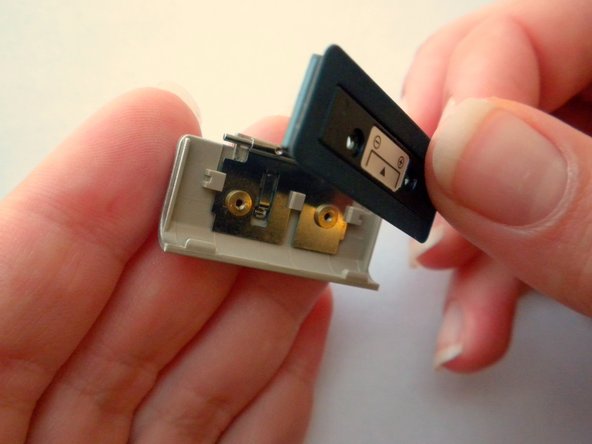

21. Slide the metal piece off of the battery cover.

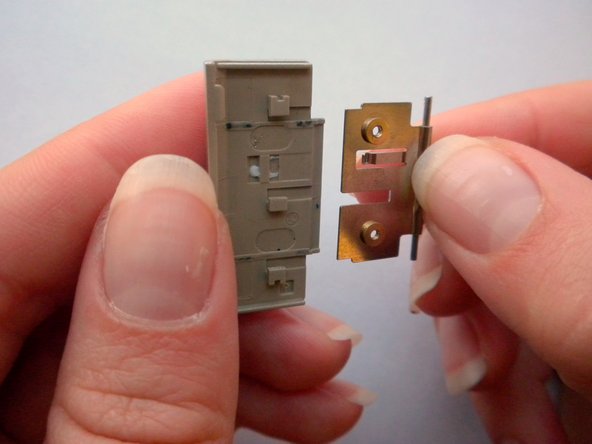

22. This is what the battery cover and back case look like completely disassembled.
