Sanyo VPC S1275 Function Set Replacement

ID: 2328

Description: Use this guide to replace the function set.

Steps:

1. Place your thumb on the right side of the camera over the battery door.
2. Slide the battery door to the right until the door lifts up.

3. Remove and recycle old batteries.

4. Remove the following six screws using the Phillips #00 screwdriver:
5. Two screws on the left side of the camera.
6. Two screws on the right side of the camera.
7. Two screws on the bottom of the camera.

8. Open the battery slot on the bottom of the camera by sliding the door to the right.
9. Remove the single 4 mm screw on the bottom right using the Phillips #00 screwdriver.

10. Insert a spudger in the seam at the bottom of the camera.
11. Gently separate the rear case from the front of the camera.

12. This step is only needed for the case and logic board replacement
13. Using the Phillips #00 screwdriver, remove the single screw attached to the front casing in the top left corner. The front case should easily separate.

14. This step is only needed for the case replacement.
15. Using the Phillips #00 screwdriver, remove the screw on the inside of the battery door.
16. Slide the battery door off of the hinge.

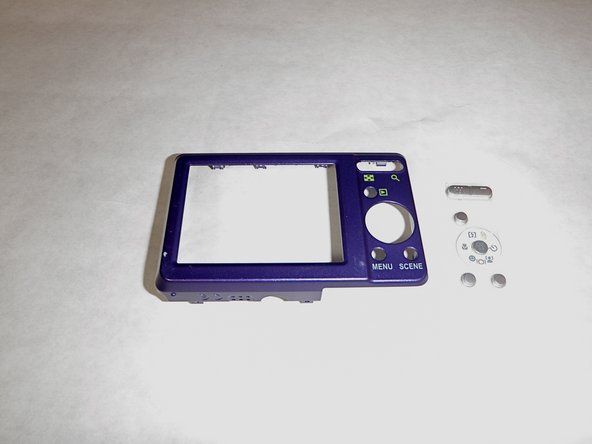

17. Remove the function set strip by lifting it from the inside of the rear case.
18. The function strip is now free from the camera.
