Motorola V551 Keypad Replacement

ID: 1320

Description: This is a guide showing how to replace and...

Steps:

1. Press down on the chrome button on the bottom of the chassis. Simultaneously slide the back cover down, away from the phone.

2. Lever the battery out by pressing upwards on the bottom corners of the battery.

3. Remove the rubber screw covers using a plastic spudger.

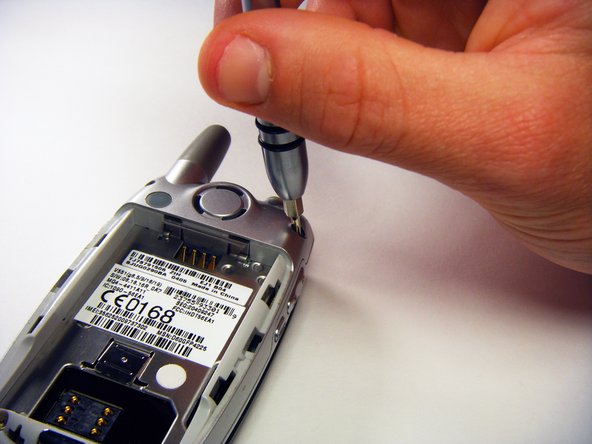

4. Use a T6 Torx screwdriver to remove the screws underneath the rubber screw covers.

5. Unscrew the antenna.

6. Gently release the two latches using an opening tool.
7. The plastic latches are very fragile. Don’t use excessive force or they might break.
8. Pry off the back panel by wedging an opening tool into the crevice between the back panel and the circuit board.
9. Lift the back panel off of the phone.

10. Loosen the copper circuit board connection with an opening tool.
11. Gently lift the copper connection.

12. Lift up and pull out the pressure pad from under the buttons on the side of the chassis.
13. Gently lift the motherboard off of the front panel.

14. Push both side keys in so they are not sticking out of the phone.
15. Remove the keypad.
