Razer Pro Click Mobile Teardown

ID: 1220

Description: The insides of a nice bluetooth mouse by Razer.

Steps:

1. The Razer Pro Click Mobile mouse served me well for over a year and a half. It's a compact bluetooth mouse that handles magnificently.
2. Unfortunately, curiosity is not the only thing that drove me when I decided to do this teardown. The left button stopped working :(
3. therefore, I (am going to) FIX IT (see what i did there :] ?)

4. And now, for the teardown. Open the battery compartment as you do every time this power hog runs out of juice. As you can see, i'm using rechargeables for that reason
5. Pull the two marked plastic elements outwards.

6. Remove the two philips screws marked.

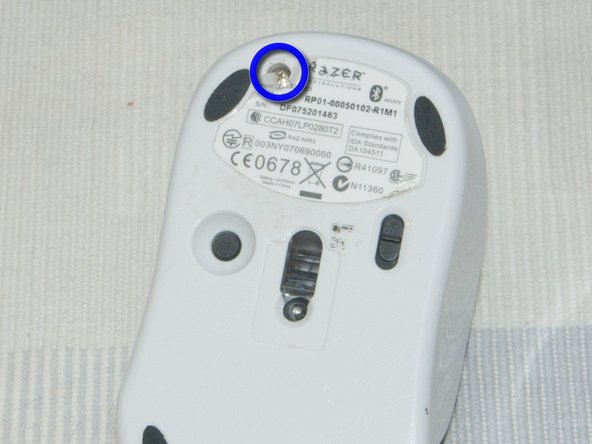

7. There is a third screw under the sticker, on the underside of the mouse. The sticker breaks easily and this probably voids the warranty.

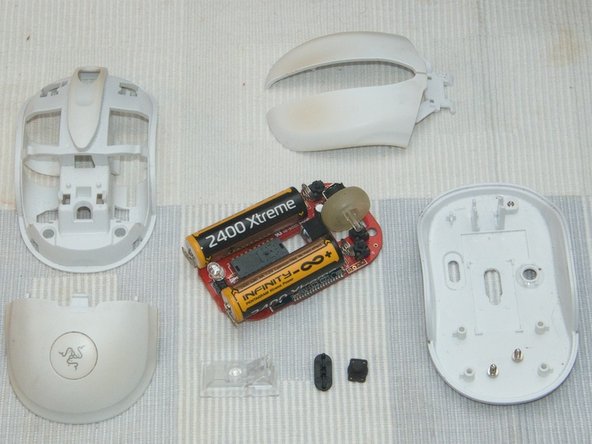

8. You may now remove the main plastic cover.

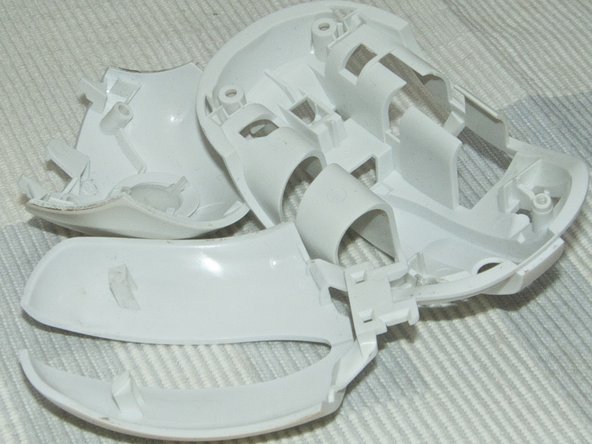

9. The plastics are very thick and look firm. My model survived a LOT of abuse, but apparently i dropped it one time too many for the left button to work.

10. Now we may remove the main board.
11. The device consists of two chips

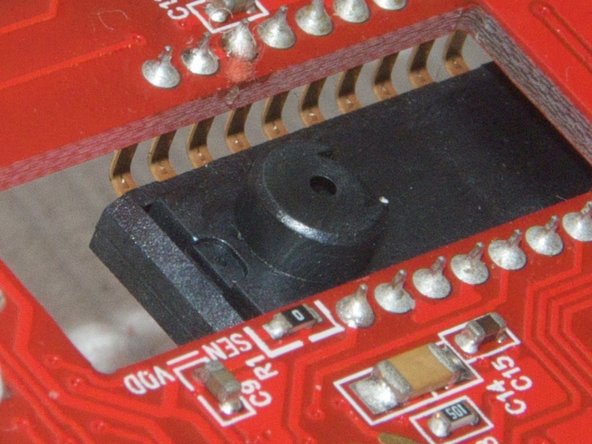

12. The optical sensor is on the middle unit signed: A3030 B0741F

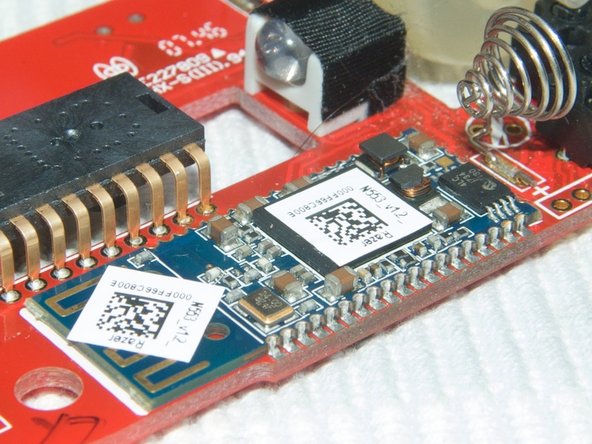

13. The second chip is on a separate, blue board. On it there is a white sticker with "Razer" and N553_v1.2_ signed on it

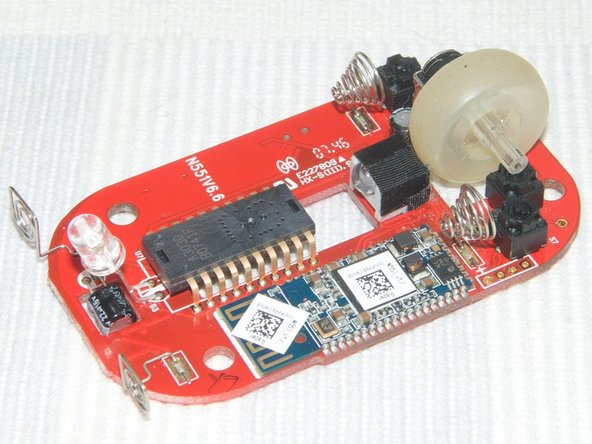

14. The rest of the elements are LEDs, buttons, the wheel mechanism, a single capacitor and springs for the battery

15. On the bottom we see the lens, the on/off switch and the reset button
