Sony D-822K Car Discman Teardown

ID: 1197

Description: I'm going to dissect an old friend, my first...

Steps:

  1. Obtain a D822-K Discman and remote. True, it has DSP and Surround Sound, but the 90's have come and gone. It's okay to take it apart.
    2. Step image
  2. Position unit so that the bottom is facing up. Remove the 6 screws.
  3. Hold top and bottom of unit together as you turn the unit over, bottom facing down. Use caution; the upper and lower case, along with circuit board are now loose.
  4. Watch out for the AVLS and illumination switches, they love to disappear when unsupervised. Remove top of case.
    5. Step image
  5. Removing the CD reader: Gently pull all 3 rubber grommets sideways, away from the CD reader.

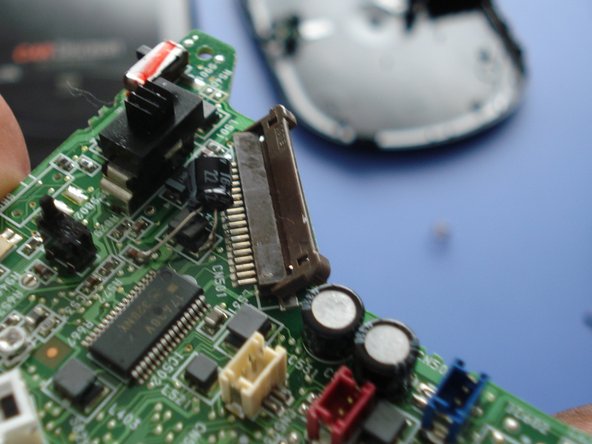

  6. Slide edge of ribbon cable connector towards ribbon cable to disengage.
  7. Unplug the red, white, and blue plugs from the circuit board.
    8. Step image Step image Step image
  8. Observation: This is the Hydro Suspension system...really.
    9. Step image Step image
  9. Remove circuit board
  10. Notice the dual-color light modules. (I temporarily connected the power to show off the lights)
    11. Step image Step image Step image
  11. Disconnect tailpiece, and power supply.
    12. Step image
  12. Remote: Remove the 3 screws from the bottom. Pull apart.
  13. The function buttons have a neat overlay design.
    14. Step image Step image
  14. Completely disassembled. The illumination button was lost for two weeks after reassembling... but who uses amber lights anymore?
    15. Step image
